We are Ultrasound Professionals

Quality in your daily practice

Sophisticated system and new UI(User Interface) design of E-CUBE 15 Platinum will add premium value to your daily practice.
Combination of a vast range of features and the powerful architecture
applied will provide superb image quality and help you facilitate productive diagnostic exams.
In turn, you shall be able to spare extra time for communicating with individual patients to offer the quality care.

Clinical Image

  • Carotid artery and jugular vein in Color Flow

    Carotid artery and jugular vein in Color Flow

  • Carotid artery in PW

    Carotid artery in PW

  • Breast in 2D

    Breast in 2D

  • Thyroid in Color

    Thyroid in Color

  • Popliteal artery in Color

    Popliteal artery in Color

  • Shoulder in 2D

    Shoulder in 2D

  • Tendon of a finger in 2D

    Tendon of a finger in 2D

  • Bowel in 2D

    Bowel in 2D

  • Liver in Dual Live mode

    Liver in Dual Live mode

  • Kidney in CF and PD mode

    Kidney in CF and PD mode

  • 4 chamber view

    4 chamber view

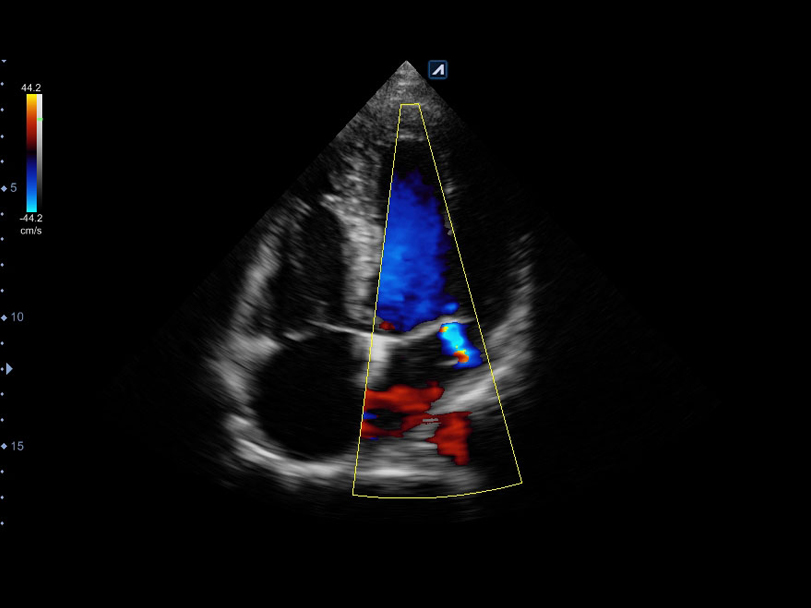

  • 4 chamber view with mitral regurgitation in Color

    4 chamber view with mitral regurgitation in Color

  • Breast with Elatography

    Breast with Elatography

  • Fetal brain with Free Angle MSV (Advanced 3D™)

    Fetal brain with Free Angle MSV (Advanced 3D™)

  • Fetal spine with AnySlice™ (Advanced 3D™)

    Fetal spine with AnySlice™ (Advanced 3D™)

  • Uterus with Free Angle MSV (Advanced 3D™)

    Uterus with Free Angle MSV (Advanced 3D™)

  • 3D fetus with Live HQ™

    3D fetus with Live HQ™

  • Uterine fibroid in Dual Live mode

    Uterine fibroid in Dual Live mode

  • Fetus at 12 weeks in 2D

    Fetus at 12 weeks in 2D

  • Write zoom fetal heart in Dual mode

    Write zoom fetal heart in Dual mode

  • Umbilical artery in Color

    Umbilical artery in Color

  • Uterine artery in PW

    Uterine artery in PW

  • Middle cerebral artery in Color

    Middle cerebral artery in Color

  • Fetus at 24 weeks in 2D

    Fetus at 24 weeks in 2D

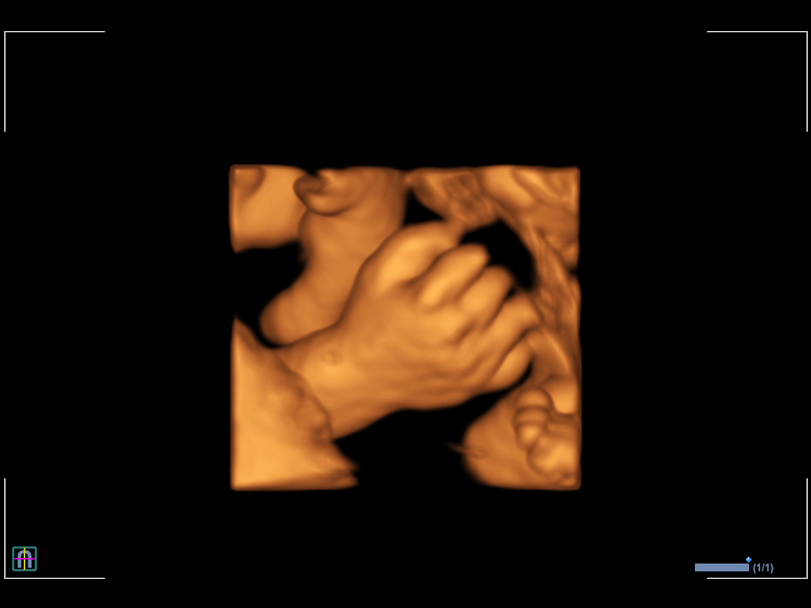

  • Hand of fetus

    Hand of fetus

Excellence in image quality

Superb image quality in 2D-mode

Reliable high performance in Color Doppler

  • Crystal Signature™
    Crystal Signature™

    Maximization of the penetration to enable high-resolution imaging processes

  • Improved fundamental 2D imaging performance
    Improved fundamental 2D imaging performance

    The new hardware to improve resolution, contrast, and uniformity of 2D images

    The combined image optimizing algorithm, Optimal Imaging Suite™ Plus provides exceptional details, clearer border definition and a wider grayscale in tissue

  • Enhanced Doppler performance
    Enhanced Doppler performance

    Two individual pulsers of H/W architecture separately control each signals of 2D mode and Doppler

    To improve Doppler image quality

  • Advanced Xpeed™
    Advanced Xpeed™

    A single touch of Xpeed™ quickly provides optimized clinical images with lowest noise levels

    Dynamic range levels can be detected and predicted in real time to be automatically optimized with the Xpeed™

  • Transducers
    Transducers

    Wide angle endovaginal transducers: EV3-10X/EC3-10X

    High frequency hockey stick linear transducer: IO8-17

    Intra-oral linear transducer: IO3-12

Simplicity of workflow design

Intuitive and efficient user experience

Improves quality of patient care in daily practice

  • New user interface
    New user interface

    The latest GUI design

    Easier access to essential function and mode

  • New control panel
    New control panel

    Configurable six keys

    The intuitive layout of control panel with adjustable backlight

  • Enhanced computing power
    Enhanced computing power

    Speedy data processing with 120GB SSD memory & 1TB HDD

    Approx.53 seconds booting time

Advancement of technology

Enhanced visualization

Intelligent analysis tools

  • CEUS
    CEUS

    Determination of diseases through real-time angiography of organs and tumors

    Useful in determining liver lumps, performing liver biopsy, and evaluating severity of liver fibrosis and portal hypertension

  • Auto EF
    Auto EF

    Evaluation and measurement of contraction of the left ventricle by automatically calculating EF(Ejection Fraction)

    Automatic detection of ESV (End Systolic Volume) and ESD (End Systolic Dimension) information for the more clarified view of direction and shape of the needle

  • DPDI (Directional Power Doppler Imaging)
    DPDI (Directional Power Doppler Imaging)

    Improvement in delivering information related to direction of blood flow

    Useful in sensing relatively slower blood flow in peripheral blood vessels with high sensitivity

  • Raw data post processing
    Raw data post processing

    Raw-data based image processing technology

    Adjustment of parameter and re-measurement available with stored images for in-depth diagnosis after initial diagnosis

  • Elastography
    Elastography

    Display of relative elasticity of tissues against external pressure

    Indication bar marked with the scale of one to six to enhance credibility of results

  • Volume Advance™
    Volume Advance™

    On top of the Volume Master™(Multi Planar Rendering, Cube CT and Multi Slice View), Volume Advance™ provides more functions to handle volume data (Free Angle MSV, AnySlice™, and Volume Analysis)

    Helpful to understand anatomical and pathological characteristics and volume information with accuracy and detail

Design & Ergonomics

01 02 03 04 05 06
  • 0121.5 inch full HD LED monitor

    High-resolution monitor of 1,920x1,080 pixels providing clear clinical images

    Wider viewing angle featured by IPS (In-Plane Switching) technology to prevent the undistorted images

  • 02Articulating monitor arm

    Fully articulating monitor arm

    140mm up and down, swivel +/- 90°and tilt +15°/ -90°

  • 0310.4-inch touchscreen

    Touchscreen with high sensitivity equivalent to tablet PCs

    Up-to-date UI design

  • 04Built-in gel warmer

    Temperature controlled by three levels for patient comfort

  • 05Motorized-height adjustment of control panel

    An up down push button for easy adjustment of height of control panel

  • 06Transducer cable holders

    Four transducer cable holders are available to keep the transducer cables neatly organized

Transducers
  • SC1-4H
    SC1-4H

    High density single crystal convex transducer (1-4MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

  • SC1-6H
    SC1-6H

    High density single crystal convex transducer (1-6MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

  • SC1-4HS
    SC1-4HS

    High density single crystal convex transducer (1-4MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

  • C5-8N
    C5-8N

    Microconvex (5-8MHz)

    Application

    Abdomen, Cardiac, EM

  • L8-17X
    L8-17X

    Extreme-high density linear transducer (8-17MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • L3-12H
    L3-12H

    High density linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • L3-8H
    L3-8H

    High density low frequency linear transducer (3-8MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • IO3-12
    IO3-12

    Intraoral transducer (3-12MHz)

    Application

    EM , Small Parts

  • IO8-17
    IO8-17

    High frequency hockey stick (8-17MHz)

    Application

    Small Parts, MSK

  • L3-12X
    L3-12X

    Extreme-high density linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • MP1-5X
    MP1-5X

    Extreme high density multi-layered phased array transducer (1-5MHz)

    Application

    Abdomen, Cardiac, EM, TCD

  • SP3-8
    SP3-8

    Single crystal phased array transducer (3-8MHz)

    Application

    Abdomen, Cardiac, EM, Pediatric

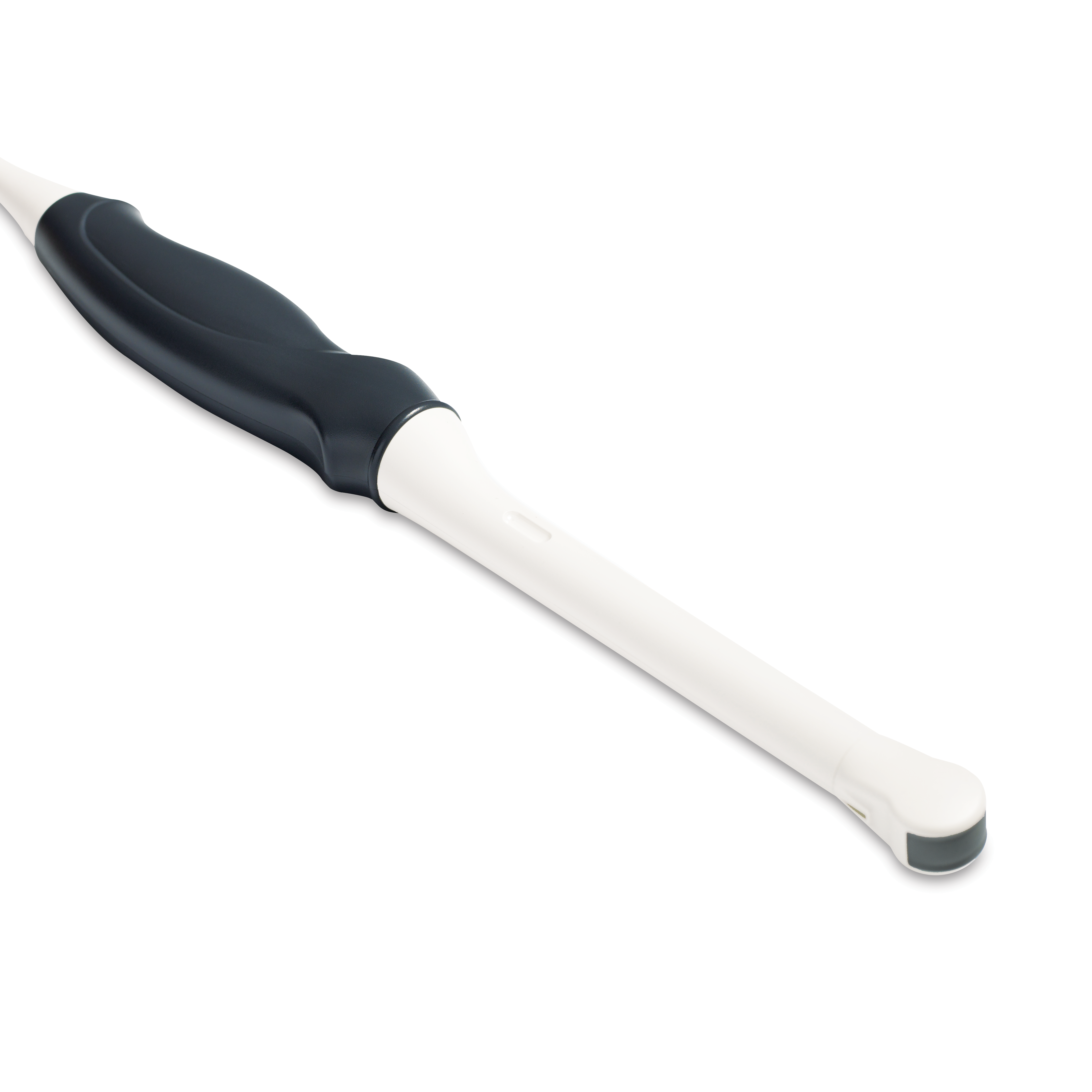

  • EV3-10X
    EV3-10X

    Extremely high density, wide angle FOV up to 230°(3-10MHz)

    Application

    GYN, OB, Urology, EM

  • EV3-10H
    EV3-10H

    High density endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • EC3-10X
    EC3-10X

    Extremely high density, wide angle FOV up to 230° (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • EC3-10H
    EC3-10H

    High density endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • SVC1-6H
    SVC1-6H

    High density single crystal volume convex transducer (1-6MHz)

    Application

    Abdomen, OB, GYN, EM

  • VE3-10H
    VE3-10H

    High density volume endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • CW5.0
    CW5.0

    Pencil type transducer (5.0MHz)

    Application

    Cardiac

  • CW2.0
    CW2.0

    Pencil type transducer (2.0MHz)

    Application

    Cardiac
