Product

We are Ultrasound Professionals

Bringing excellence to daily care

The E-CUBE 12 is a great partner for the management of medical environments.

The E-CUBE 12 helps medical practitioners make quick and accurate diagnoses.
Moreover, with its simple and user-friendly features, they can provide more patients with medical services in the same amount of time. The E-CUBE 12 gives medical practitioners more time to focus on their roles and to provide patients a more comfortable and positive healthcare experience. By using the E-CUBE 12, medical practitioners can earn a deeper trust from their patients and ultimately advance their clinic’s success.

Clinical Image

  • Breast nodule with L3-12HWD

    Breast nodule with L3-12HWD

  • Breast nodule

    Breast nodule

  • Breast with L3-12HWD

    Breast with L3-12HWD

  • Kidney

    Kidney

  • Liver and kidney

    Liver and kidney

  • Liver with Color

    Liver with Color

  • Renal vessel

    Renal vessel

  • Thyroid with Color

    Thyroid with Color

  • Thyroid01

    Thyroid_01

  • Thyroid02

    Thyroid_02

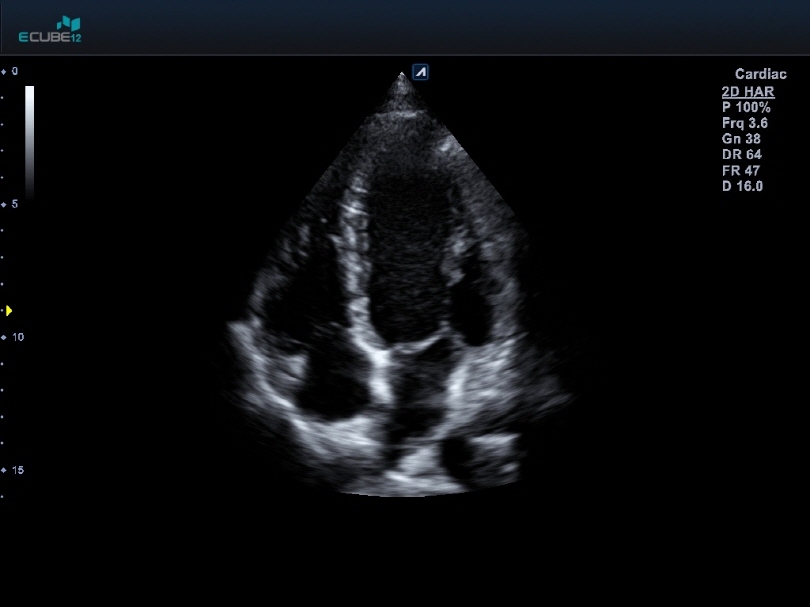

  • Heart 4ch view with Color

    Heart 4ch view with Color

  • Heart 4ch view

    Heart 4ch view

  • Heart PLAX

    Heart PLAX

  • Heart PSAX

    Heart PSAX

  • Heart TDI PW

    Heart TDI PW

  • Strain01

    Strain_01

  • Strain02

    Strain_02

  • Stress Echo

    Stress Echo

  • Auto IMT

    Auto IMT

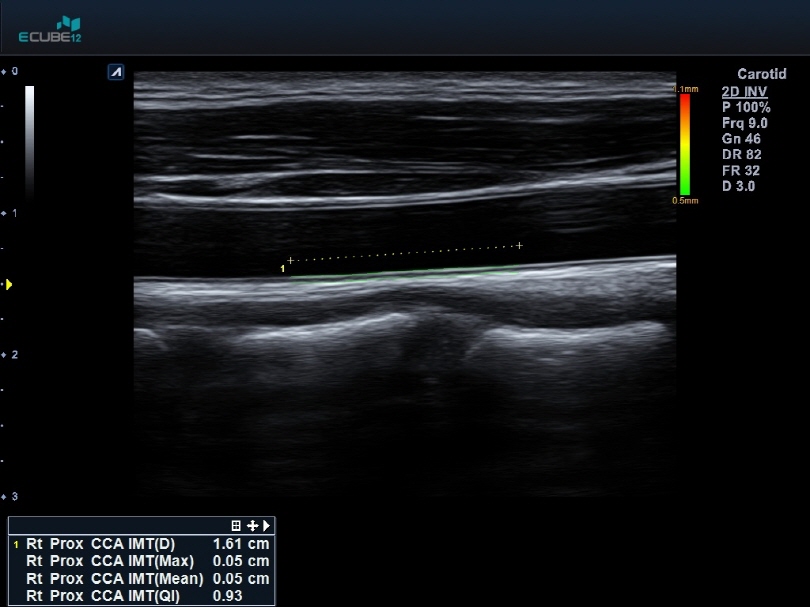

  • Carotid artery IMT

    Carotid artery IMT

  • Carotid artery in Color and PW

    Carotid artery in Color and PW

  • Carotid artery in Color

    Carotid artery in Color

  • Jugular vein with Color and PW

    Jugular vein with Color and PW

  • Jugular vein with Color

    Jugular vein with Color

  • Elbow

    Elbow

  • Knee

    Knee

  • Shoulder01

    Shoulder_01

  • Shoulder02

    Shoulder_02

  • Shoulder02

    35wk fetal face with Live HQ™

  • Bladder

    Bladder

  • Fetal brain MSV

    Fetal brain MSV

  • Fetal face in MPR

    Fetal face in MPR

  • Fetal heart01

    Fetal heart_01

  • Fetal heart02

    Fetal heart_02

  • Ovary

    Ovary

  • Uterus longitudinal view

    Uterus longitudinal view

  • Uterus transverse view

    Uterus transverse view

Confidence to care

High-performance system and transducers provide you with higher quality images

High-resolution images help you perform examinations more quickly and obtain more accurate diagnoses

  • Optimal Imaging Suite™ Plus
    Optimal Imaging Suite™ Plus

    More accurate data by distinguishing boundaries between tissues more clearly, and by expressing richer tissue textures

  • Xpeed™
    Xpeed™

    Simply press the Xpeed™ button once to quickly optimize images in 2D Mode and Spectrum Doppler Mode for different clinical cases

  • High performance transducers
    High performance transducers

    High-performance Single Crystal (Crystal Signature™) transducers

    Cost-effective C-Architecture (PowerView™) transducers

Simplified to be your best

  • Power Preset
    Power Preset

    You can load a system preset saved in advance with a single touch

    Quick and easy application of presets will shorten the image setup time

  • Quick and user-friendly control panel
    Quick and user-friendly control panel

    Reduce the time the user spends pressing keys and makes work easier

    Frequently used functions can be assigned to six user keys

    Adjustable brightness of the backlight on the control panel for a darker environment

  • SSD for quick exam preparation
    SSD for quick examination preparation

    The use of high-end hardware and an SSD enhances stability of the system

    The fast booting time makes speedy preparation for examinations possible

Everlasting Suit - Ergonomic & Valuable Design

01 02 03 04 05 06 07
  • 01Monitor that delivers accurate images

    The 21.5-inch, FHD (1,920×1,080) LED monitor

    With the use of IPS (In-Plane Switching) technology

  • 02Fully articulating monitor arm for better vision

    90 mm up and down, swivel +/- 86° and tilt +10°/-90°

  • 03Gel warmer developed for patient convenience

    The temperature can be adjusted in three steps

    Patients can relax and undergo an examination more comfortably

  • 04Convenient and intuitive touchscreen

    An intuitive UI design

    A high-sensitivity, high-resolution 10.4-inch touchscreen

  • 05High gloss surface control panel

    Always look new and luxury at harsh environments

    Long lasting color and protection against fading and cracking

  • 06User-friendly control panel

    The height and angle of the control panel can be adjusted easily and conveniently

    A sliding keyboard can be used when needed

  • 07Compact transducer connectors and system

    Compact and light transducer connectors

    The system is slim yet it does not take up much space

    Scan patients more comfortably, and disconnect or reconnect the transducers easily

Transducers
  • SC1-6H
    SC1-6H

    High density single crystal convex transducer (1-6MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

  • SC1-4HS
    SC1-4HS

    High density single crystal convex transducer (1-4MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

  • C5-8NT
    C5-8NT

    Microconvex (5-8MHz)

    Application

    Abdomen, EM, Cardiac, Pediatric

  • C1-6CT
    C1-6CT

    C-Architecture (PowerView™) Convex transducer (1-6MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

  • L8-17X
    L8-17X

    Extreme-high density linear transducer (8-17MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • L8-17H
    L8-17H

    High density linear transducer(8-17MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • L3-12H
    L3-12H

    High density linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • L3-12HWD
    L3-12HWD

    High density wide footprint linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts, Appendix

  • L3-8H
    L3-8H

    High density low frequency linear transducer (3-8MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • IO3-12
    IO3-12

    Intraoral transducer (3-12MHz)

    Application

    EM , Small Parts

  • IO8-17T
    IO8-17T

    High frequency hockey stick (8-17MHz)

    Application

    Small Parts, MSK

  • L3-12X
    L3-12X

    Extreme-high density linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • P1-5CT
    P1-5CT

    C-Architecture (PowerView™) phased array transducer (1-5MHz)

    Application

    Abdomen, Cardiac, EM, TCD

  • SP3-8T
    SP3-8T

    Single crystal phased array transducer (3-8MHz)

    Application

    Abdomen, Cardiac, EM, Pediatric

  • EV3-10X
    EV3-10X

    Extremely high density, wide angle FOV up to 230°(3-10MHz)

    Application

    GYN, OB, Urology, EM

  • EV3-10H
    EV3-10H

    High density endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • EC3-10X
    EC3-10X

    Extremely high density, wide angle FOV up to 230° (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • EC3-10H
    EC3-10H

    High density endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • SVC1-6H
    SVC1-6H

    High density single crystal volume convex transducer (1-6MHz)

    Application

    Abdomen, OB, GYN, EM

  • VE3-10H
    VE3-10H

    High density volume endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

  • CW5.0
    CW5.0

    Pencil type transducer (5.0MHz)

    Application

    Cardiac

  • CW2.0
    CW2.0

    Pencil type transducer (2.0MHz)

    Application

    Cardiac
