We are Ultrasound Professionals

ALPINION’s innovation begins with transducer technology.

ALPINION’s research and development in medical transducer technology ranges from advanced diagnostic ultrasound transducers – both PZT and single crystal material, innovative and unique processing technology, and application-specific acoustic designs – to treatment transducers specialized for use with HIFU.

In the ultrasound field, ALPINION has developed the largest variety of single crystal transducers, including convex, volume convex and phased array transducers.

  • X+ Crystal signature
  • High Density
  • Extreme High Density
  • Single Crystal
  • Wide Angle
  • PowerView
  • SC1-4H
    SC1-4H

    High density single crystal convex transducer (1-4MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 8 Diamond

  • SC1-6H
    SC1-6H

    High density single crystal convex transducer (1-6MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12
    E-CUBE 8 Diamond

  • SC1-4HS
    SC1-4HS

    High density single crystal convex transducer (1-4MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12
    E-CUBE 8 Diamond

  • C1-6T
    C1-6T

    Convex transducer (1-6MHz)

    Application

    Abdomen, Renal, Fetal Echo, EM Gynecology O bstetrics MSK, Urology

    Compatibility

    E-CUBE 5
    E-CUBE i7

  • C5-8NT
    C5-8NT

    Microconvex (5-8MHz)

    Application

    Abdomen, EM, Cardiac, Pediatric

    Compatibility

    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE 5
    E-CUBE i7

  • C1-6CT
    C1-6CT

    C-Architecture (PowerView™) Convex transducer (1-6MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics

    Compatibility

    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE

  • C5-8N
    C5-8N

    Microconvex (5-8MHz)

    Application

    Abdomen, Cardiac, EM

    Compatibility

    E-CUBE 15 Platinum

  • SC1-7H

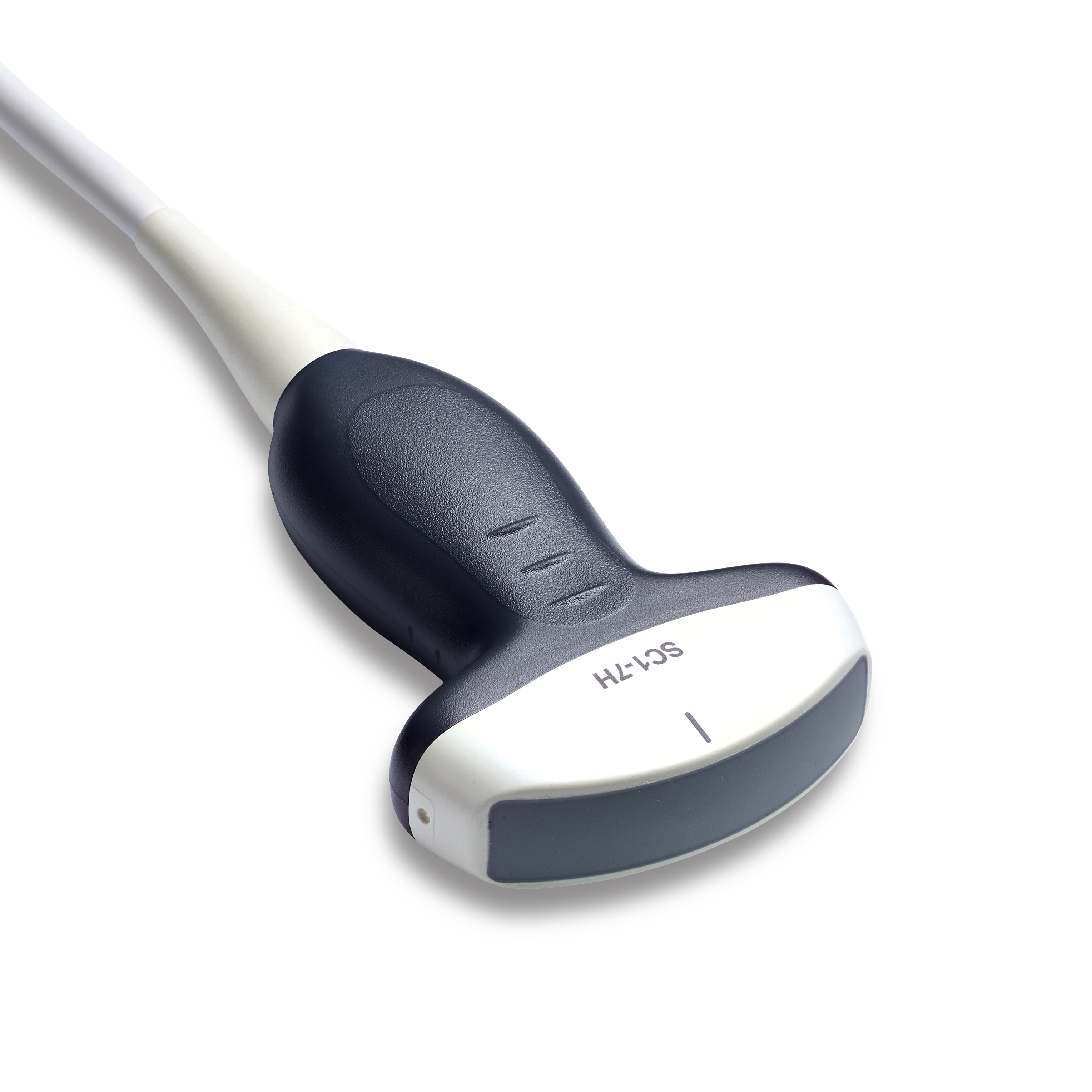

    SC1-7H

    X+ Crystal Signature™ convex transducer(1~7MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology

    Compatibility

    X-CUBE 90
    X-CUBE 70

  • L8-17X
    L8-17X

    Extreme-high density linear transducer (8-17MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12

  • L8-17H
    L8-17H

    High density linear transducer(8-17MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

    Compatibility

    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE

  • L3-12H
    L3-12H

    High density linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE

  • L3-12HWD
    L3-12HWD

    High density wide footprint linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts, Appendix

    Compatibility

    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE i7

  • L3-12T
    L3-12T

    Linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts, Appendix

    Compatibility

    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE 5
    E-CUBE i7

  • L3-8H

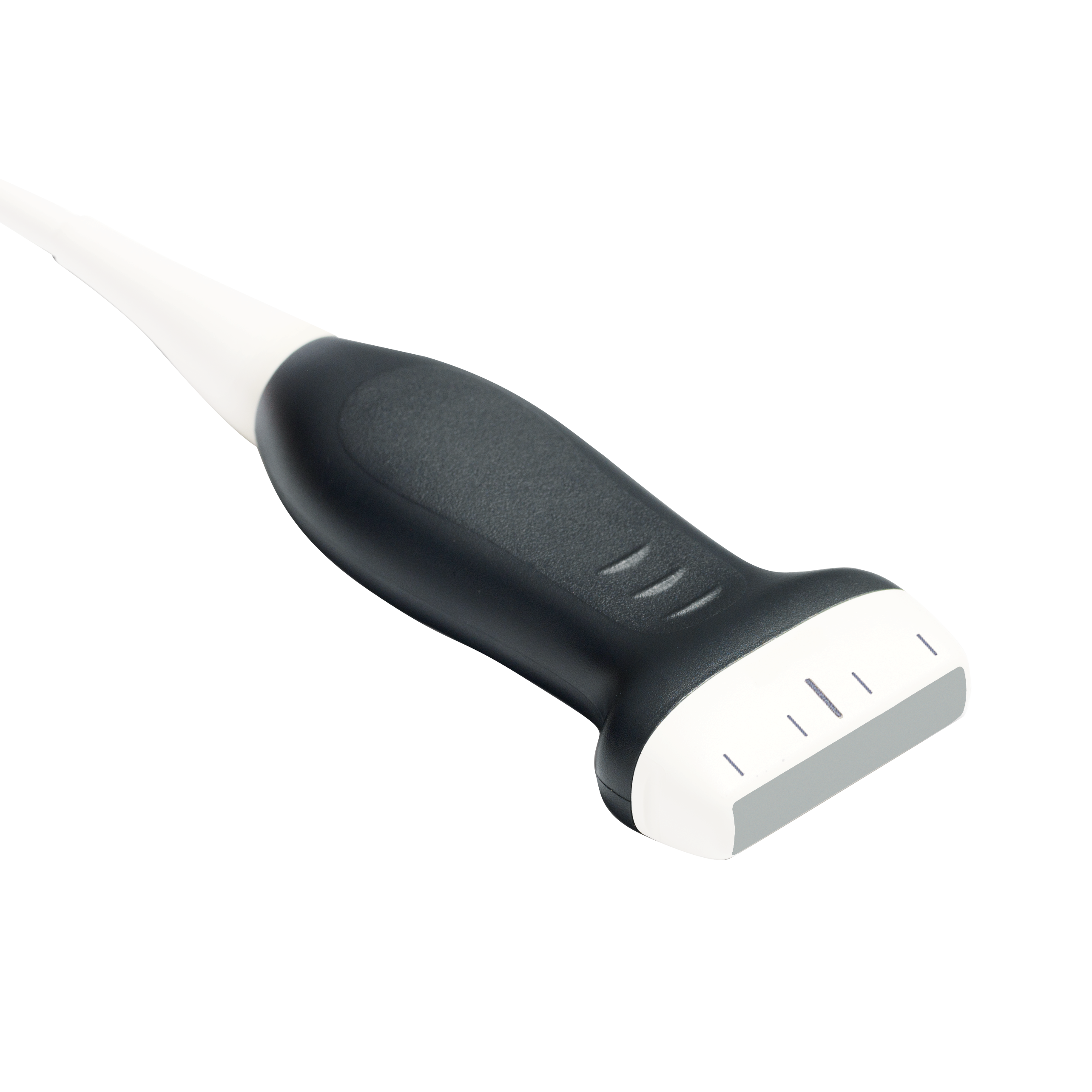

    L3-8H

    High density low frequency linear transducer (3-8MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

    Compatibility

    X-CUBE 90
    E-CUBE 15 Platinum
    E-CUBE 12

  • IO3-12
    IO3-12

    Intraoral transducer (3-12MHz)

    Application

    EM , Small Parts

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12
    E-CUBE i7

  • IO8-17
    IO8-17

    High frequency hockey stick (8-17MHz)

    Application

    Small Parts, MSK

    Compatibility

    E-CUBE 15 Platinum

  • IO8-17T
    IO8-17T

    High frequency hockey stick (8-17MHz)

    Application

    Small Parts, MSK

    Compatibility

    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE i7

  • L10-25H
    L10-25H

    Wideband Ultra High Freq. Linear (10~25 MHz)

    Application

    Vascular, MSK, Small Parts, EM

    Compatibility

    X-CUBE 90
    X-CUBE 70

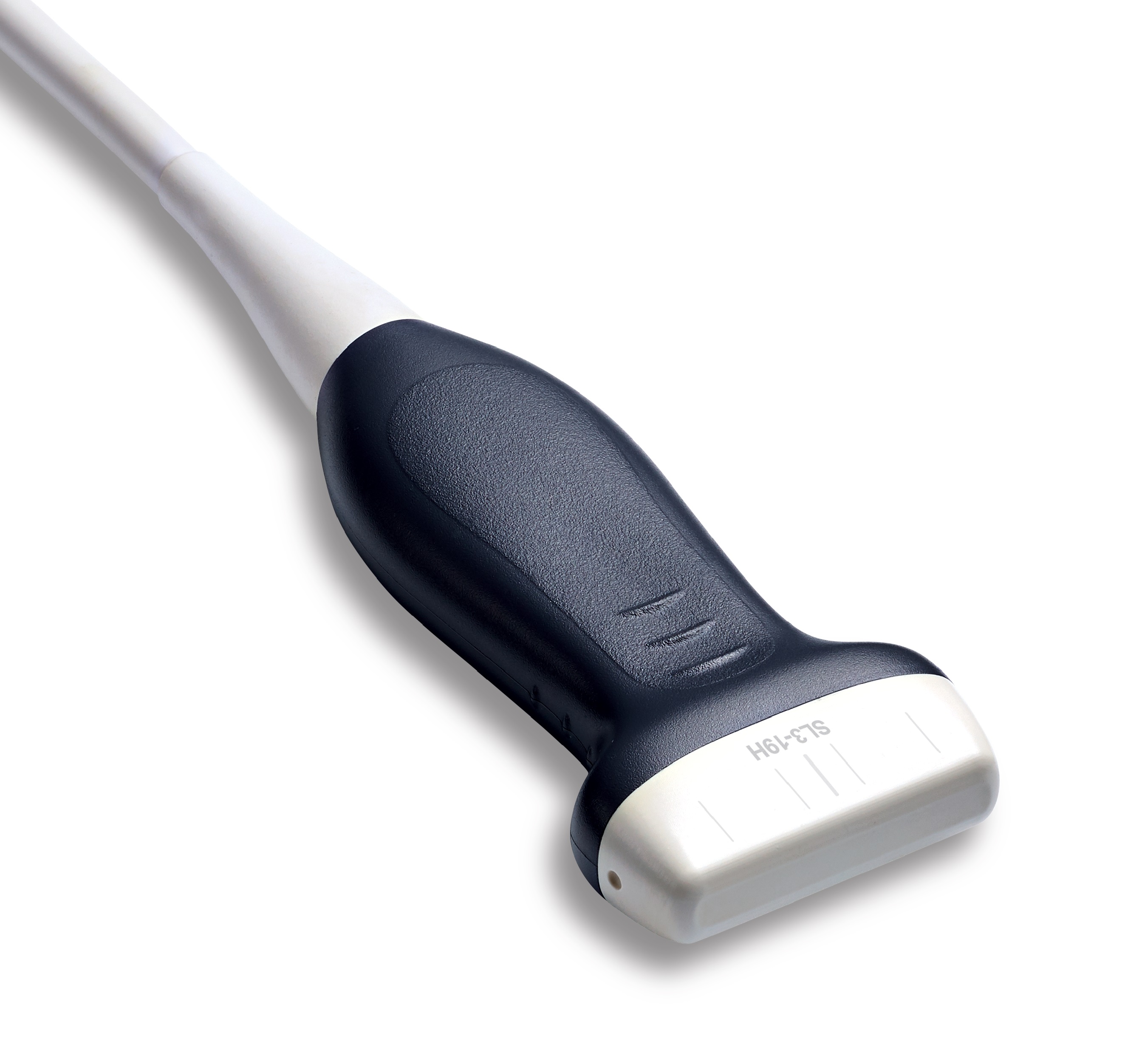

  • SL3-19H

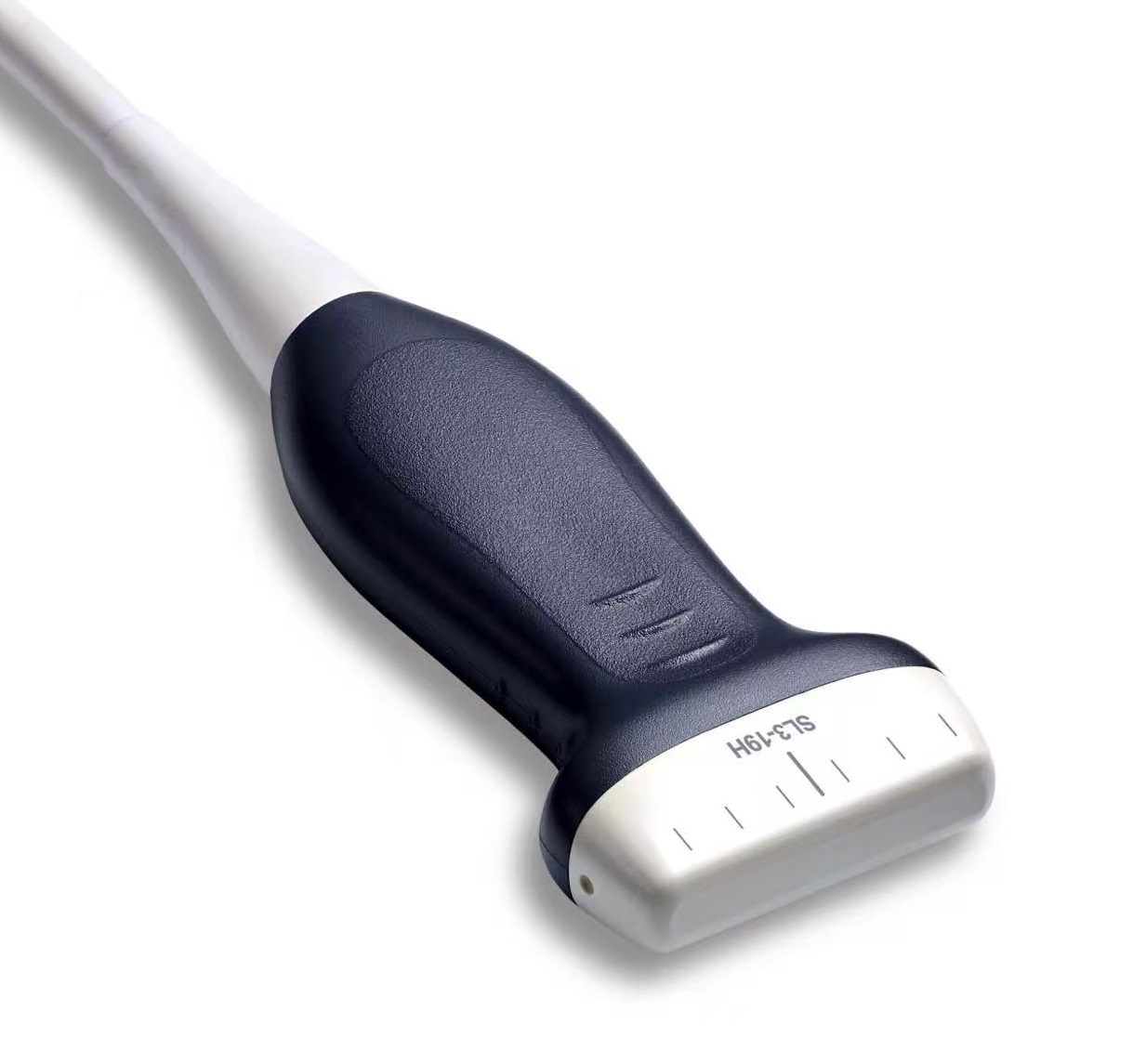

    SL3-19H

    X+ Crystal Signature™ linear transducer(3~19MHz)

    Application

    MSK, Vascular, Small Parts, TCD, Abdomen, Pediatric, Gynecology, Obstetrics, EM

    Compatibility

    X-CUBE 90
    X-CUBE 70

  • L3-12X
    L3-12X

    Extreme-high density linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

    Compatibility

    X-CUBE 90
    X-CUBE 70
    E-CUBE 15 Platinum
    E-CUBE 12

  • L3-15H

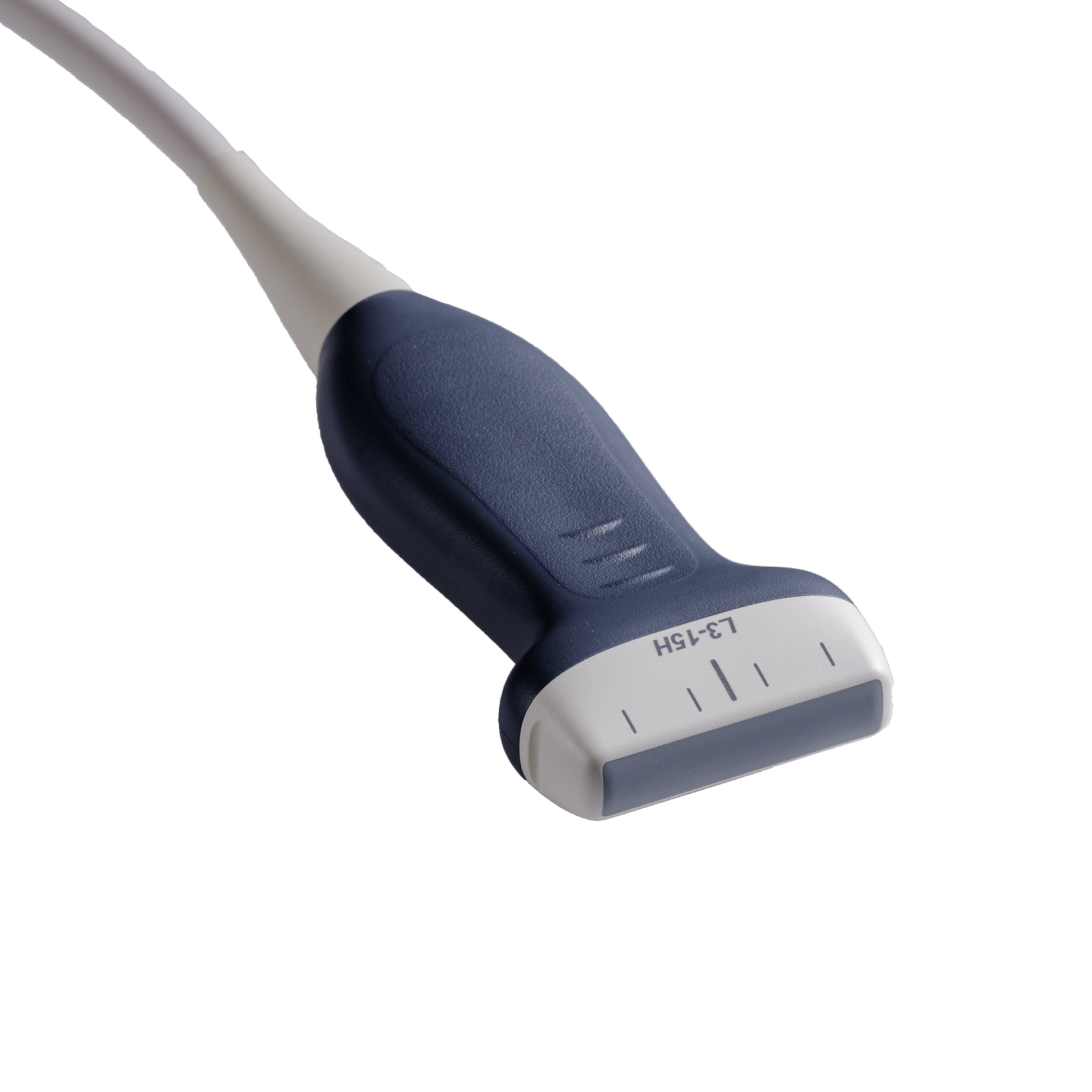

    L3-15H

    High density linear transducers (3-15 MHz)

    Application

    MSK, Vascular, Small Parts, EM

    Compatibility

    X-CUBE 70

  • SL3-19X

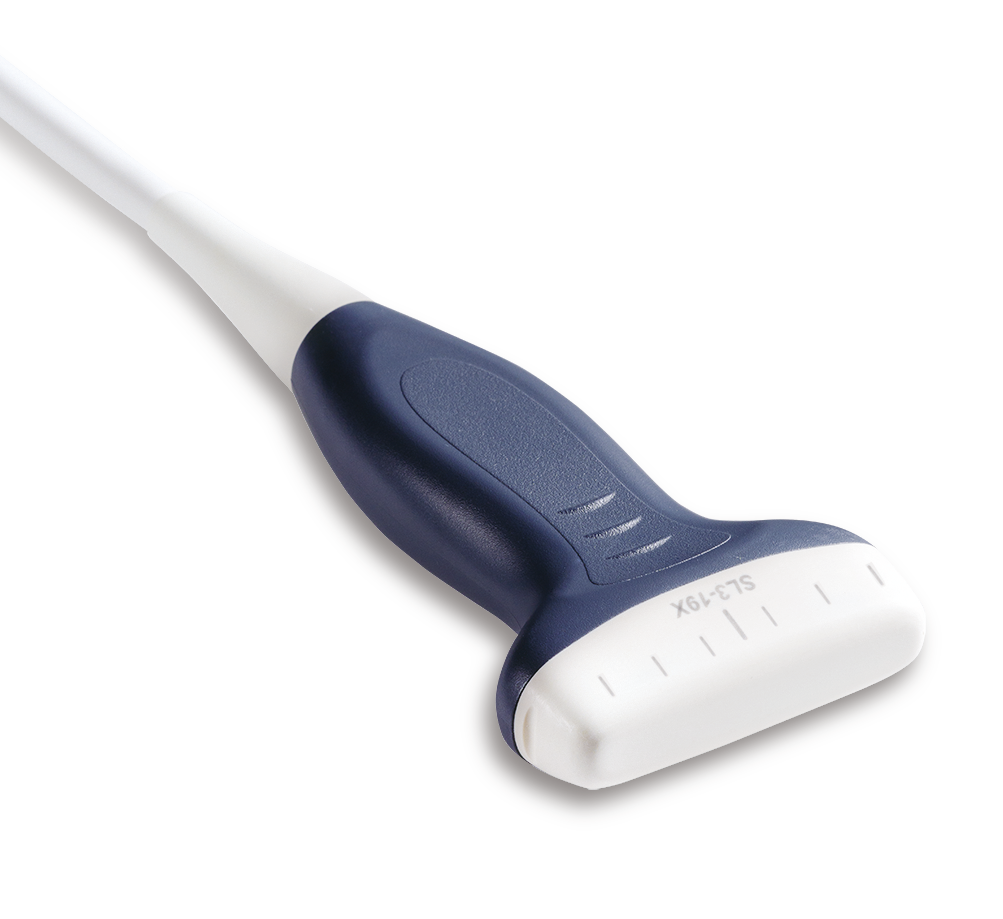

    SL3-19X

    X+ Crystal Signature™ Extreme-high density linear transducer (3-19MHz)

    Application

    Abdomen, Pediatric, Gynecology, Obstetrics, EM, MSK, Vascular, Small Parts, TCD

    Compatibility

    X-CUBE 90

  • SP1-5T
    SP1-5T

    Single crystal Phased array transducer (1-5MHz)

    Application

    Abdomen, Cardiology, EM, TCD

    Compatibility

    E-CUBE i7

  • P1-5CT
    P1-5CT

    C-Architecture (PowerView™) phased array transducer (1-5MHz)

    Application

    Abdomen, Cardiac, EM, TCD

    Compatibility

    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE

  • MP1-5X
    MP1-5X

    Extreme high density multi-layered phased array transducer (1-5MHz)

    Application

    Abdomen, Cardiac, EM, TCD

    Compatibility

    E-CUBE 15 Platinum

  • SP3-8
    SP3-8

    Single crystal phased array transducer (3-8MHz)

    Application

    Abdomen, Cardiac, EM, Pediatric

    Compatibility

    E-CUBE 15 Platinum

  • SP3-8T
    SP3-8T

    Single crystal phased array transducer (3-8MHz)

    Application

    Abdomen, Cardiac, EM, Pediatric

    Compatibility

    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE i7

  • MP1-5X(NEW)
    MP1-5X(NEW)

    X+ Crystal Signature™ phased array (1~5MHz)

    Application

    Cardiac, TCD, EM, Abdomen, Pediatric

    Compatibility

    X-CUBE 90
    X-CUBE 70

  • EV3-10X

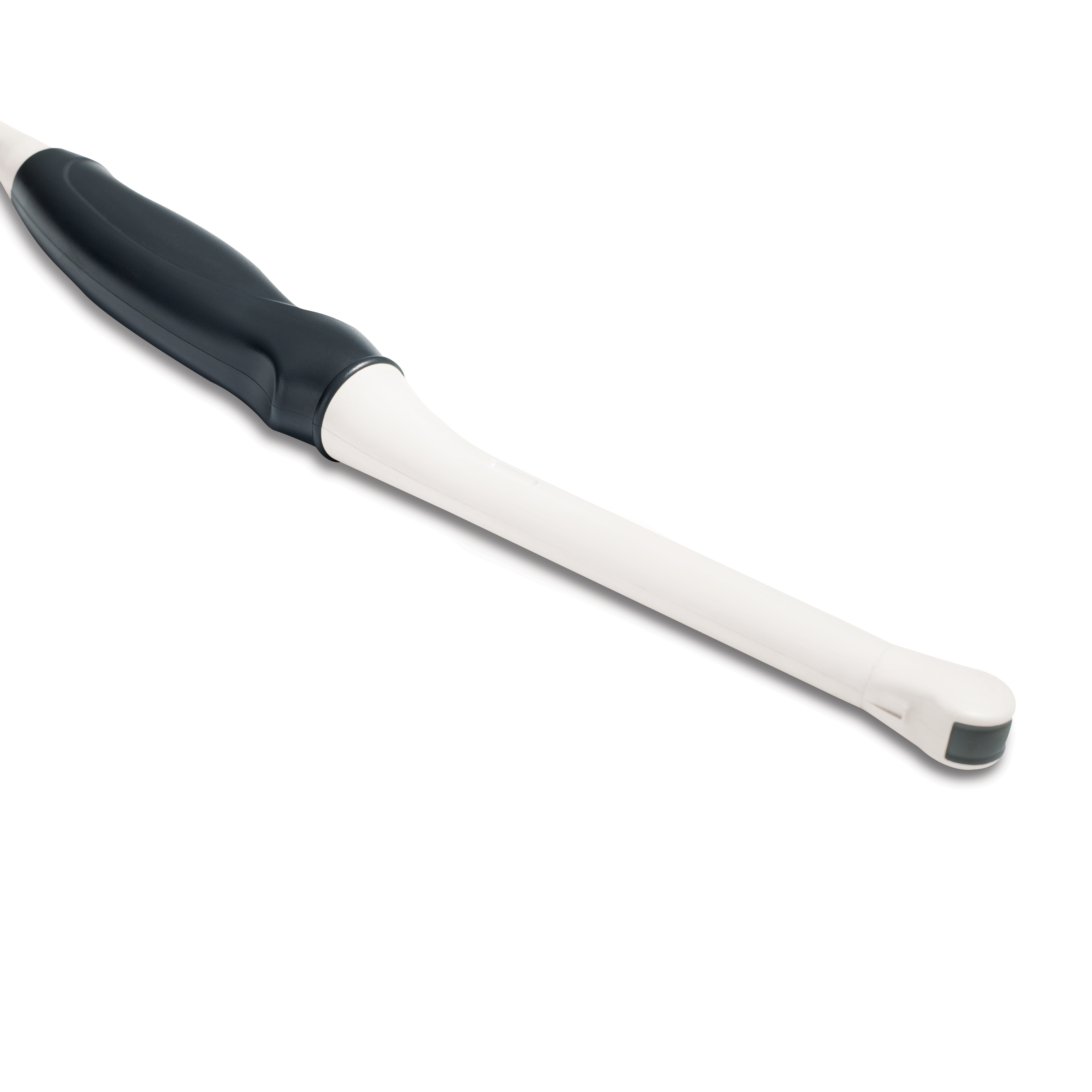

    EV3-10X

    Extremely high density, wide angle FOV up to 230°(3-10MHz)

    Application

    GYN, OB, Urology, EM

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12

  • EV3-10H
    EV3-10H

    High density endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12

  • EV3-10T
    EV3-10T

    Endocavity transducer (3-10MHz)

    Application

    GYN, OB, Fetal Echo, Urology, EM

    Compatibility

    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE 5
    E-CUBE i7

  • EC3-10X

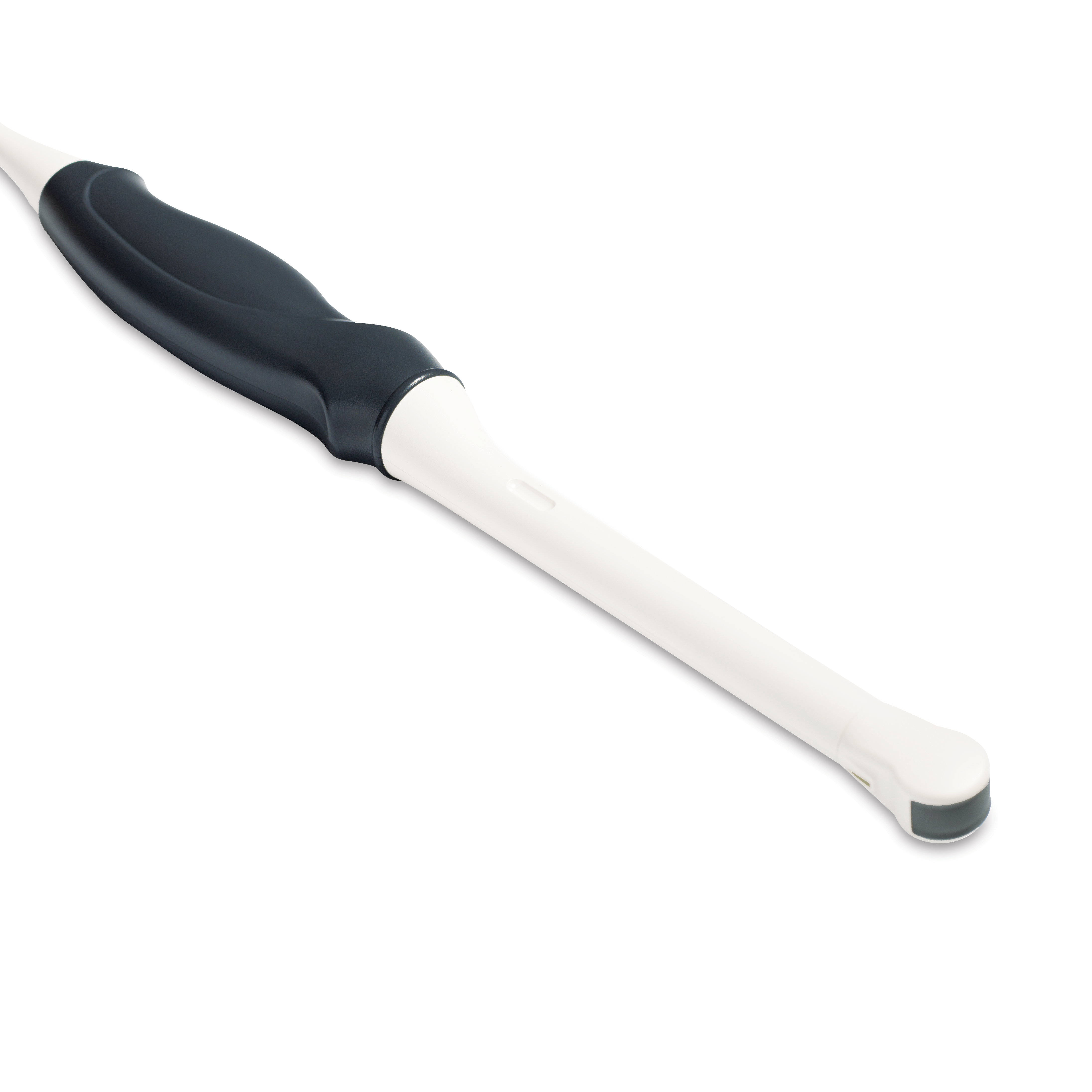

    EC3-10X

    Extremely high density, wide angle FOV up to 230° (3-10MHz)

    Application

    GYN, OB, Urology, EM

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12

  • EC3-10H
    EC3-10H

    High density endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12

  • EC3-10T
    EC3-10T

    Endocavity transducer (3-10MHz)

    Application

    GYN, OB, Fetal Echo, Urology, EM

    Compatibility

    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE 5
    E-CUBE i7

  • EV2-11H
    EV2-11H

    X+ Crystal Signature endocavity transducer(2~11MHz)

    Application

    Gynecology, Obstetrics, Urology, EM

    Compatibility

    X-CUBE 90
    X-CUBE 70

  • EC2-11H
    EC2-11H

    X+ Crystal Signature endocavity transducer(2~11 MHz)

    Application

    Gynecology, Obstetrics, Urology, EM

    Compatibility

    X-CUBE 90
    X-CUBE 70

  • SVC1-6H
    SVC1-6H

    High density single crystal volume convex transducer (1-6MHz)

    Application

    Abdomen, OB, GYN, EM

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12

  • VC1-6T
    VC1-6T

    Volume Convex (1-6MHz)

    Application

    Abdomen, OB, GYN, EM

    Compatibility

    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE i7

  • SVC1-8H
    SVC1-8H

    Single Crystal Volume Convex

    Application

    Gynecology, Obstetrics, Abdomen, Pediatric, Urology, EM

    Compatibility

    X-CUBE 90
    X-CUBE 70

  • VE3-10H
    VE3-10H

    High density volume endocavity transducer (3-10MHz)

    Application

    GYN, OB, Urology, EM

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE

  • VE3-10H(NEW)
    VE3-10H(NEW)

    Volume Endocavity

    Application

    Gynecology, Obstetrics, Urology, EM

    Compatibility

    X-CUBE 90
    X-CUBE 70

  • CW5.0
    CW5.0

    Pencil type transducer (5.0MHz)

    Application

    Cardiac

    Compatibility

    E-CUBE 15 Platinum
    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE i7

  • CW2.0
    CW2.0

    Pencil type transducer (2.0MHz)

    Application

    Cardiac

    Compatibility

    X-CUBE 90
    X-CUBE 70
    E-CUBE 15 Platinum
    E-CUBE 12
    E-CUBE 8 Diamond
    E-CUBE 8
    E-CUBE 8LE
    E-CUBE i7
